Dettagli:
|
| Specifications | |||
| Brand | Dason | Product Name | mini frame solenoid |
| Model | XSQ0727-05A05 | Voltage | DC 5V |
| Power | 5w | Force | -N |
| Stroke | 5mm | Duty Cycle | 10-100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Push pull type | Weight(N.W.) | 0.01kg |
| Install Style | Screw | Thread Size & Deepth(mm) | 2-M2.5 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | 27.5*19*17 (mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
Product Features

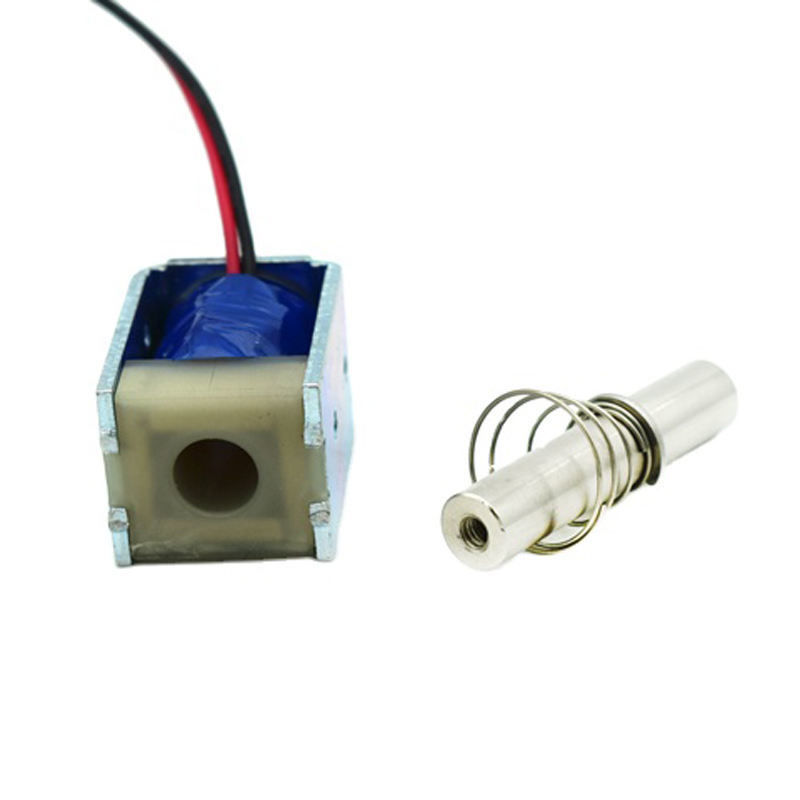

1. Push and pull type optional, linear motion, stroke optional, plunger spring reset (also you can choose not) , Dc power supply, Mini size, standard model voltage have 6v/12v/24v optional, we can custom the voltage as you need.
2.The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
3. The push pull mini frame solenoid are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
4. Open frame structure with mounting holes, accepted custom as you needed.
|
Our Products:
|
circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE
|
|
MOQ:
|
2 PCS; small orders can be acceptable if we have stocks of this product
|
|
Packing:
|
Carton, standard dimension(L*W*H): 350*310*180, customize according to customer's requirement
|
|
Delivery Time:
|
Shipped in 3-8 days after payment
|
|
Supply Ability:
|
5000Pcs per week
|
|
Payment Terms:
|
T/T; PAYPAL etc.
|
|
Shipping:
|
Sea /air freight, Express (DHL, UPS, TNT, FEDEX, EMS etc).
|
